Computational Phylogenetics using BEAST 2

Tim Vaughan and David Welch

Centre for Computational Evolution

Winter Bootcamp 2016

Biology

What is evolution?

Evolution is change in heritable traits of biological populations over successive generations.

Evolutionary processes give rise to biodiversity at every level of biological organisation, including species, individual organisms, and genes.

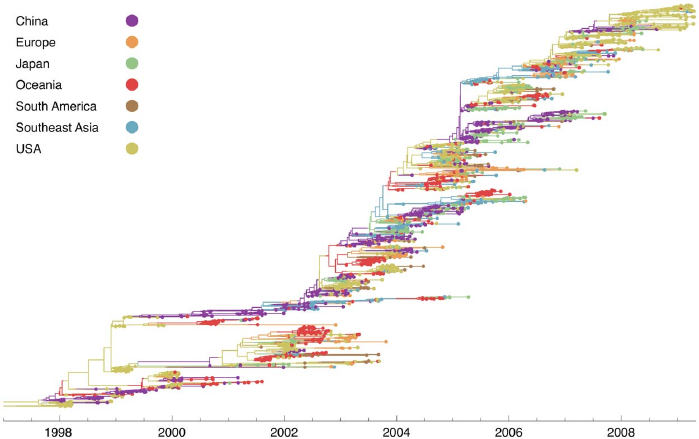

What is a phylogenetic tree?

A phylogenetic tree is a branching diagram or "tree" showing the evoluionary relationships between various species, individuals, or genes.

Bedford et al., PLoS Pathogens, 2010

Evolutionary processes

Evolution is governed by three main processes:

Reproduction

Process by which heritable traits are passed on to the next generation.

Mutation

Usually occurs due to noise in reproductive process.
Provides variability in traits.

Selection

Probability of individual reproducing may depend (weakly or strongly) on value of heritable trait.

Populations evolve, individuals do not!

Genetic drift

The random fluctuation in the frequency of a trait or allele (gene variant) distribution within a population due to the demographic process.

Modelling neutral genetic drift

All individuals descend from a common ancestor at some point in the past.
Probability that the descendants of a given individual "take over" is $1/2N$.

The molecular clock hypothesis

In a single generation a new allele is produced in the population with probability $2N\mu$.
Any individual gene eventually becomes fixed in the population with probability $1/2N$.

The probability per generation that a new allele fixes is therefore $\mu$: independent of population size!

This is not exactly true.

The phylogenetic inference problem

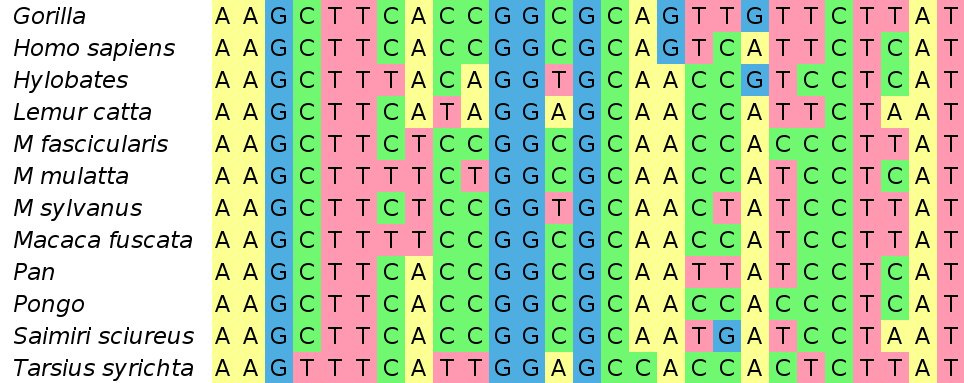

Given a set of $M$ sampled molecular sequences, infer the evolutionary relationships between them.

In a sense this is a just a clustering problem...

The phylogenetic inference problem

Edge lengths may represent genetic distance or time (if the molecular clock rate is known).
How can we do better than this?

The genealogical process

In the absence of selection, we can consider the process of tree generation in isolation.
There are numerous models that apply for different phylogenetic trees, including:
1. The Yule process as a simple model for species tree generation, and
2. the coalescent process as a simple model for gene tree generation.

The Yule process

Assumes a constant rate of speciation through time:

Single parameter is the speciation rate $\lambda$.

The coalescent process

Arises as a limit of many models in population genetics.

Probability of coalescence in single generation $\sim\binom{k}{2}\frac{1}{N}$
Geometric distribution between coalescence events.

Example coalescent tree

Coalescent trees and population dynamics

The coalescent rate is inversely proportional to the (effective) population size.

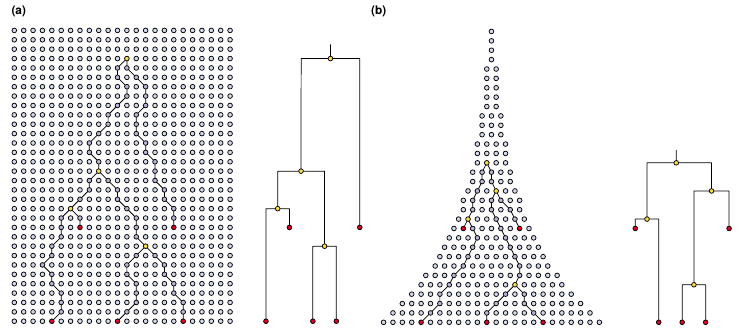

Drummond et al., Trends in Ecology and Evolution, 2003

How do we go about combining all of these different pieces of information?

The answer is...

Bayesian statistics

The meaning of Probability

We use the following definition of probability:

For propositions $A$ and $B$, the probability $P(A|B)$ is the degree to which $A$ is believed to be true,
on the condition that $B$ is true.

Who is doing the believing?
Probability is subjective.

Manipulating probabilities

There are only two rules for manipulating probabilities:

The product rule: $$P(A|B,C)P(B|C)=P(A,B|C)$$ where $A,B$ represents $A$ and $B$.

The sum rule: $$P(A|C) + P(B|C) - P(A,B|C) = P(A\vee B|C)$$ where $A\vee B$ represents $A$ or $B$.

That's it! You can now do Bayesian statistics.

Bayes' rule

Suppose we have a probabilistic model $M$ with parameters $\theta_M$. Given data $D$ which we assume has been generated by the model, what can we learn about the parameters?

Our model allows us to evaluate $P(D|M,\theta_M)$.
We want to know $P(\theta_M|D,M)$.

Mechanically applying the product rule yields

$$\color{darkred}{P(\theta_M|D,M)}=\frac{\color{yellow}{P(D|M,\theta_M)}\color{darkblue}{P(\theta_M|M)}}{P(D|M)}$$

with terms named the posterior, likelihood and prior.

Bayesian inference

Bayes' rule gives us a natural framework for drawing on many sources of information:

$\color{darkblue}{P(\theta|M_{\theta})}$ describes our state of knowledge prior to receiving $D$. (May still depend on expert knowledge.)
$\color{#808000}{P(D|\theta,M_{\theta})}$ is the likelihood of $\theta$ given $D$. Describes how the data modifies our knowledge of $\theta$.
$\color{darkred}{P(\theta|D, M_{\theta})}$ describes our state of knowledge after receiving $D$.

The posterior of one analysis may be the prior of a second.

Bayesian phylogenetic inference

Goals of Bayesian phylogenetic inference

The goal of phylogenetic inference is generally to learn about the phylogeny of a set of sampled genetic sequences.

As Bayesians we accomplish this by seeking to characterise the joint posterior: $$P(T,\mu,\theta|D) = \frac{1}{P(D)} P(D|T,\mu)P(T|\theta)P(\mu)P(\theta)$$

$P(D|T,\mu)$ is the tree likelihood
$P(T|\theta)$ is the tree prior
$P(\mu)$ and $P(\theta)$ are the parameter priors

We simultaneously learn about the tree and the parameters!

The Tree Likelihood

The tree likelihood $P(D|T,\mu)$ is the probability that the observed sequences were produced by evolving a single ancestral sequence down $T$ under a neutral substitution model with parameters $\mu$.

There is an efficient algorithm for computing this (summing over all possible ancestral sequences): Felsenstein's pruning algorithm.

The Tree Prior

The tree prior $P(T|\theta)$ is the probability for the tree $T$ based solely on the genealogical model and its parameters $\theta$.

(May also be considered the likelihood for the genealogical model parameters $\theta$ given the tree.)

Yule prior (speciation rate $\lambda$)
Coalescent prior (population function $N(t)$)
Structured Coalescent prior (sub-population sizes $N_i$, migration rates $m_{ij}$))
Birth-death priors (birth and death rates)
Transmission tree priors (infection, recovery rates)
...

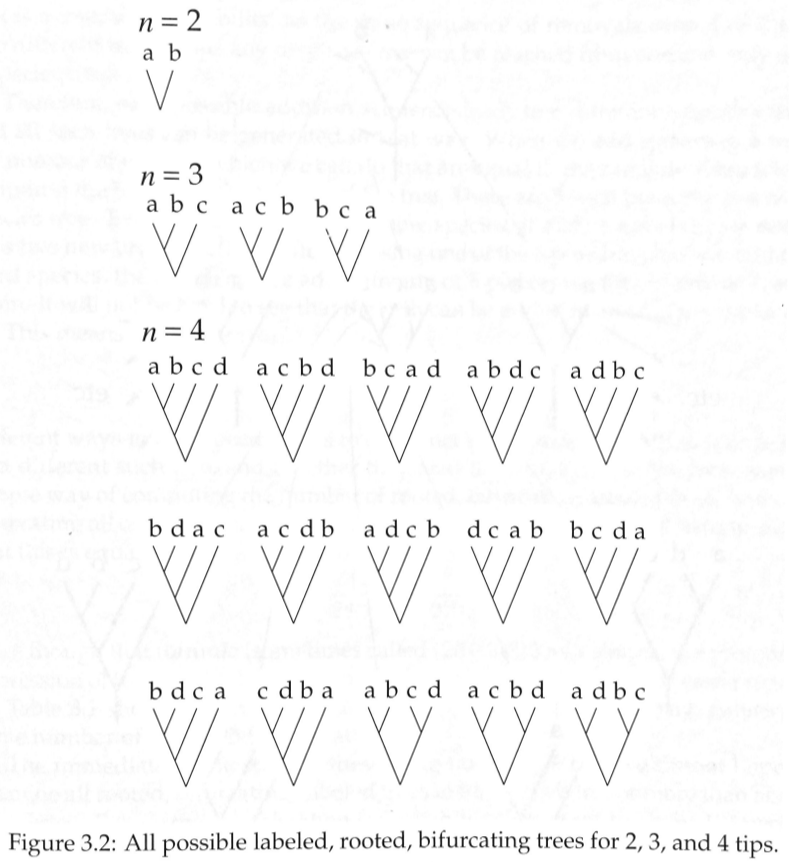

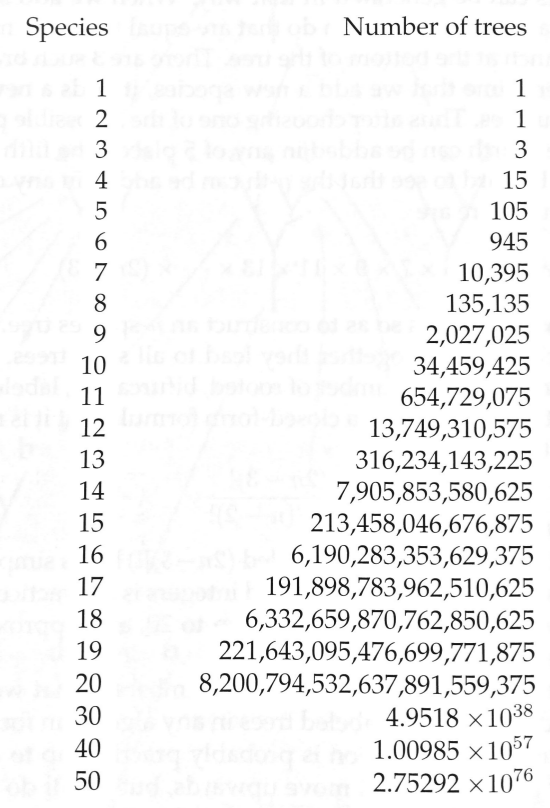

How many trees are there?

Felsenstein, 2004

Markov Chain Monte Carlo (MCMC)

MCMC basics

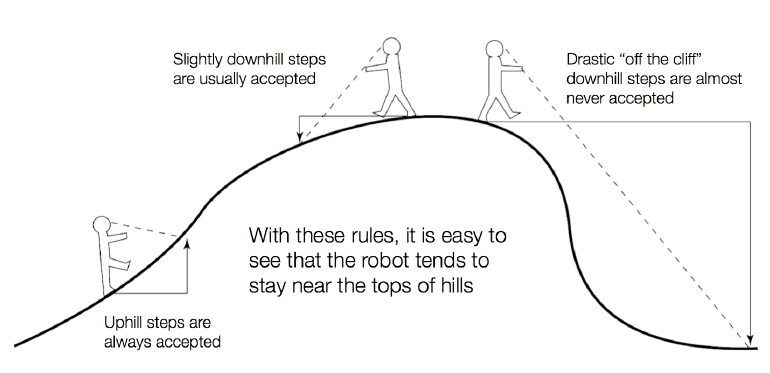

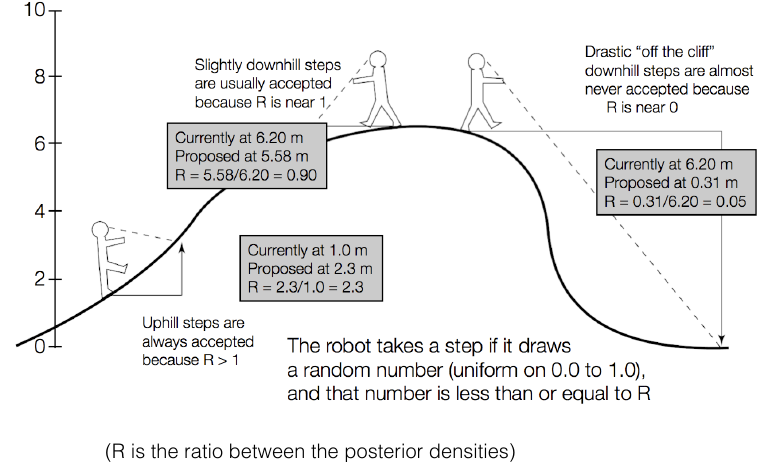

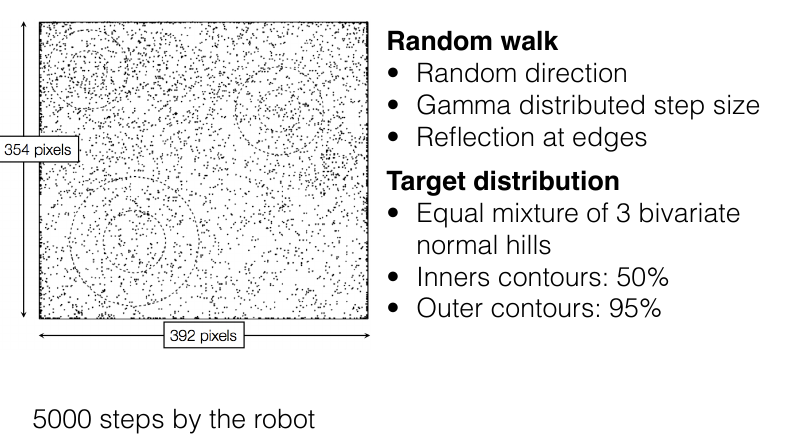

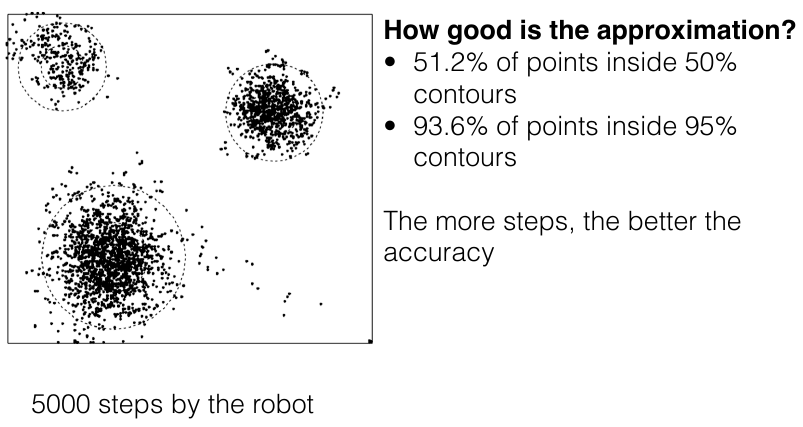

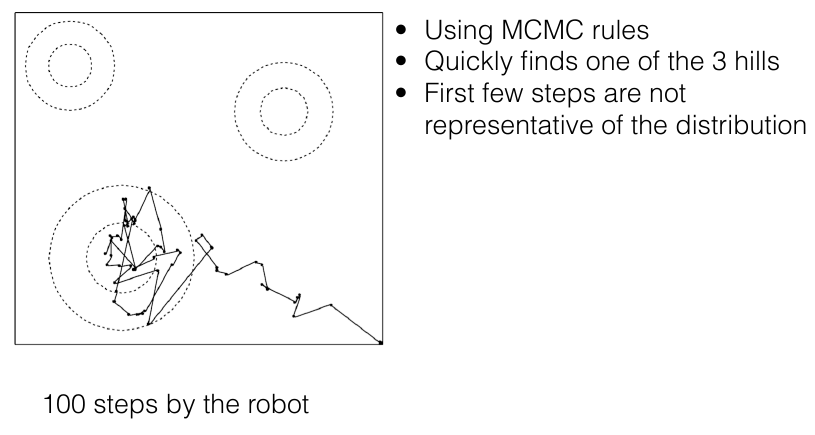

MCMC (aka the Metropolis-Hastings algorithm) allows us to generate samples from a target distribution $P(\vec{x})$ assuming that we can evaluate $\alpha P(\vec{x})$ where $\alpha$ is an arbitrary unknown constant.

MCMC works by performing a biased random walk over $\vec{x}$ constructed so that the relative frequency of visiting state $\vec{x}$ at equilibrium is equal to $P(\vec{x})$.
